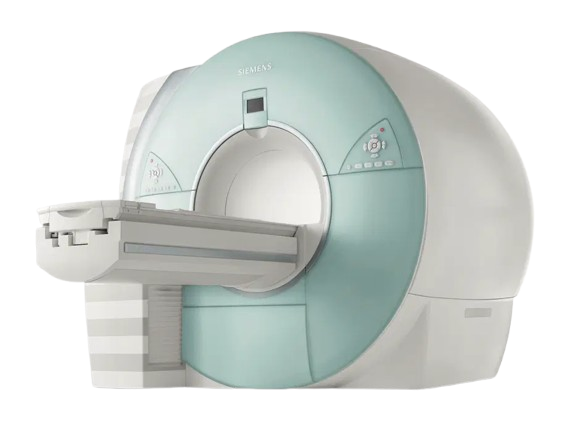

Siemens Magnetom Avanto 1.5T
Refurbished MRI scanner
Product Overview
The Siemens MAGNETOM Avanto 1.5T MRI system is a whole body scanner, featuring the Tim (Total Imaging Matrix) RF system with 8, 18, or 32 available independent RF receiver channels. The Tim concept allows you to combine elements from physically separate coils without patient repositioning or coil changes, for shorter exams and greater patient comfort.
Features
- Strong medical diagnostic confidence due to outstanding magnet homogeneity for exceptional fat saturation
- Large Field of View: 50 cm FOV
- Strong gradients for high resolution imaging and shorter scan durations
- Siemens Tim system providing unrivaled clinical flexibility, imaging accuracy and speed
- Short-bore, compact
- Q-Engine and SQ-Engine gradient system
- ECG/peripheral, respiratory gating for synchronization
- 5cm – 50cm field of view
- 60cm Bore
- 5 Tesla field strength
- Up to 97 % acoustic noise reduction
- Wide, patient-friendly inner bore diameter (60 cm / 2 ft.)
- Q-engine (33 mT/m at 125 T/m/s) or SQ-engine (45 mT/m at 200 T/m/s) with 50 cm field of view (FOV)
- Slew rate up to 200 T/m/s
- Reconstructs up to 3226 images per second
- Ultrafast, highly compact, water-cooled gradient amplifier
- syngo speaking user interface
- Sites in only 325 sq.ft. floor space
- Two CPU’s with 3 GHz and 2 GB RAM capacity
Specifications
Fat Saturation: The Avanto 1.5T is exceptional for cardiac MRI. The combination of strong gradients, outstanding parallel imaging with Siemens syngo GRAPPA, and high magnet homogeneity make the Siemens MAGNETOM Avanto 1.5 Tesla MRI scanner perfect for heart MRI.
Whole Angiography: Siemens’ Tim coil combinations provide the flexibility to address any FOV up to 205 cm. The system is accurate enough to see tiny vessels and quick from head to toe with Parallel Imaging (TA 1:27 min.)
- Siemens Avanto Workflow Innovations: syngo Inline Technology, syngo Phoenix, syngo PhoenixZIP, syngo AutoAlign solutions, syngo Expert-I
- Available Coils: 16-Channel Al Breast, 32-Channel Body, 32-Channel Head, 4-Channel Bl Breast, 4-Channel Flex Coil - Large, 4-Channel Flex Coil – Small, 8-Channel Foit Ankle 8-Channel Knee, 8-Channel Wrist, Body Matrix, Breast Matrix, CP Extremity, CP Flex Coil – Large, CP Flex Coil – Small, CP Head Array, Double Loop Array, Endorectal Coil Interface, Head Matrix, Loop Coil – Large, Loop Coil – Medium, Loop Coil – Small, Loop Flex Coil – Large, Loop Flex Coil – Small, Neck Matrix, PA Matrix, Shoulder Array, Spine Matrix, Tx/Rx 15-Channel Knee, Tx/Rx CP Head, Up to 97 % acoustic noise reduction, Wide, patient-friendly inner bore diameter (60 cm / 2 ft.), Q-engine (33 mT/m at 125 T/m/s) or SQ- engine (45 mT/m at 200 T/m/s) with 50 cm field of view (FOV), Slew rate up to 200 T/m/s, Reconstructs up to 3226 images per second, Ultrafast, highly compact, water-cooled gradient amplifier, syngo speaking user interface, Sites in only 325 sq.ft. floor space
