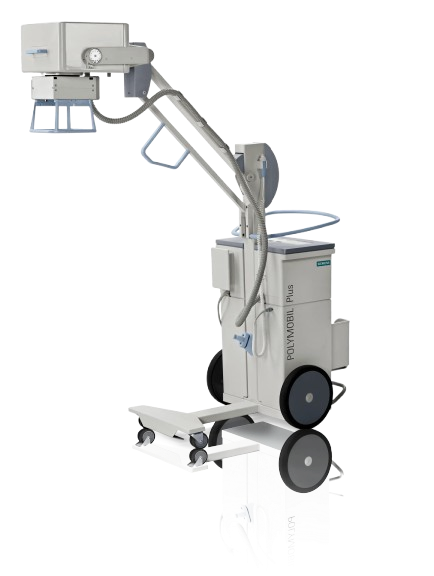

Siemens Polymobil Plus

Refurbished Mobile X-Ray

Siemens Polymobil Plus
Product Overview

Over the years, and in thousands of facilities worldwide, POLYMOBIL® has established its strong reputation. POLYMOBIL Plus lives up to its name in offering mobile versatility for a multitude of applications. POLYMOBIL Plus makes it easy to bring the X-ray system to the patient. Whether for patient wards, intensive care, operating room, sports medicine practice or for occupational medical facilities, POLYMOBIL Plus is designed to give you high value for the investment.

Enquire Now
  • Smart design, big effect
  • MAXreach arm
  • Optimal care for smallest patients
  • Easy cleaning, improved patient safety
  • Advanced workflows, greater security

Mains voltage - 110 V ± 10% 50/60 Hz, 230 V ± 10% 50/60 Hz

Power output - Standard:

- max. 125 kV 128 mA

- max. 250 mA 63 kV

- max. 16kW – 99 kV – 161 mA – 100 ms

- min. 0.32 mAs

20 kW option:

- max. 125 kV 130 mA

- max. 300 mA 50 kV (to mAs < 10 mAs)

- max. 20 kW – 99kV-202mA-100ms

- min. 0.32 mAs

Impedance of the power supply – Max. 1Ω at 110V/ Max. 1Ω at 230V

kVp range – 40-125 kV in 23 or 45 steps

mAs range - Line Voltage: 230 V

- 0.32–250 mAs in 30 or 59 steps:

- 0.50–200 mAs at 40–48 kV

- 0.40–250 mAs at 50 kV

- 0.40–200 mAs at 52–57 kV

- 0.32–200 mAs at 60–63 kV

- 0.32–160 mAs at 66–81 kV

- 0.32–125 mAs at 85–102 kV

- 0.32–100 mAs at 109–125 kV

Line Voltage: 110 V

- 0.32–160 mAs in 28 or 55 steps:

- 0.50–125 mAs at 40–48 kV

- 0.40–160 mAs at 50 kV

- 0.40–125 mAs at 52–57 kV

- 0.32–125 mAs at 60–63 kV

- 0.32–160 mAs at 66–81 kV

- 0.32–80 mAs at 85–102 kV

- 0.32–64 mAs at 109–125 kV

Shortest exposure time - ≤ 4 ms (40–125 kV)

Max. exposure time - 6 s

Exposure release - Exposure release button with 5 m (16.4 feet) of spiral cable

Length of power cord - 5.5 m

Power line connection - Grounded safety power socket (L/N/Gnd)

X-ray tube - IAE X22 with a nominal focal spot value 0.8 (acc. to IEC 60336)

Anode rotation - 2,800 r.p.m., 50 Hz (anode angle 15°)

Tube housing heat storage capacity - 800,000 J = 1,100,000 HU

Anode heat storage capacity - 80,000 J = 107,000 HU

Total inherent filtration - Min. 3.0 mm according to IEC 60522

Collimator - Manually-adjustable multi-leaf collimator, rotatable ± 45°

Tube housing assembly - Max. temperature 60°C, max. 2,800 mAs/h, nominal continuous rating 100 W until the covers reach 60°C

Collimator light and light field intensity - Halogen lamp min. 180 lux at 1 m SID (without DAP equipment)

Weight Approx. 171 kg

Dimensions footprint (l x w x h) (Tube in park position) - 1,305 x 631 x 1,325 mm

Tube positioning

- Max. focal spot height 1,895 mm

- Min. focal spot height 420 mm

- Max. horizontal extension 1,100 mm
