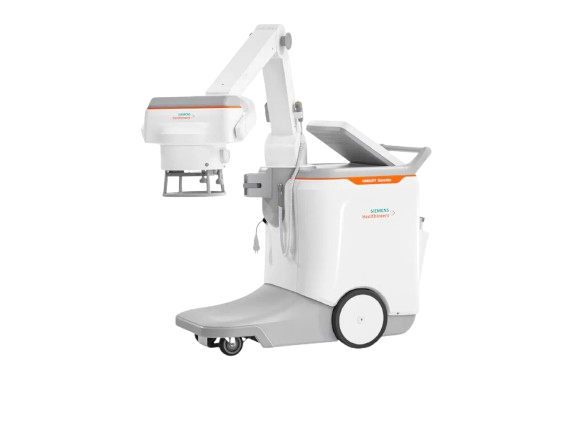

Siemens Mobillet Elara Max
Refurbished Mobile X-Ray
Product Overview
- High-end, fully digital mobile X-ray system
- Compact system design, easy maneuverability, flexible positioning with the MAXreach arm and consistently high-quality images
- Easy-to-clean design
- 7 patient types setup
- Intuitive and fully digital syngo FLC workflow, excellent wireless connectivity, virtual workstation and cybersecurity package
- Detectors
- 35 × 43 cm (optional MAX wi-D)
- 24 × 30 cm (optional MAX mini)
Features
- Smart design, big effect
- MAXreach arm
- Optimal care for smallest patients
- Easy cleaning, improved patient safety
- Advanced workflows, greater security
Specifications
- Advanced workflows, greater security
- Footprint (l x w x h) - 127.8 cm x 59.8 cm x 157 cm
- Max. focal spot height - 213.5 cm
- Tube positioning: Max. horizontal extension - 124.5 cm
- System weight (w/o optional accessories) - Approx. 380 kg
- MAX wi-D detector - Dimensions 35 cm x 43 cm, Scintillator Cesium iodide (Csl), Weight 3.3 kg
- MAX mini detector - Dimensions 24 cm x 30 cm, Scintillator Cesium iodide (Csl), Weight 1.6 kg
- System access - Numeric keypad / PIN code or standard key switch1
- User interface - syngo FLC
- Standard battery pack (65 Ah) - Battery operation time 6 h/200 exposures at 70 kV/20 mAs, Standby time (On state) 12 h
- High-power battery pack - (90 Ah)1, Battery operation time 8 h/270 exposures at 70 kV/20 mAs, Standby time (On state) 16 h
- Image processing - DiamondView MAX: Automatic, dose-neutral image processing for enhanced organ-specific contrast and high level of detail visibility
- Detector sharing - Possible across all MAX systems via MAXswap
- Dose Area Product (DAP) measurement chamber - Integrated dose area product measurement system
- Infrared remote control - Operating range 10 m, 180°
- WLAN connectivity - Industrial-strength WLAN module for increased reach and improved connectivity, Supported WLAN standards: 802.11 a/b/e/g/h/i/n, Supported frequency bands: 2.4 / 5 GHz
