OEC 9900 Elite – 9 Carm
Refurbished Premium C-arm system

Product Overview

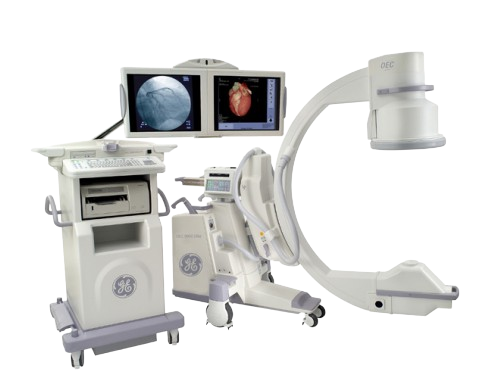

The General Electric OEC 9900 Elite C-Arm provides exceptional picture quality, making it appropriate for a wide range of clinical, surgical, and vascular applications in settings such as the ER, OR, ICU, and interventional procedures.
This system includes a spatio-temporal noise filter with a minimum difference, real-time dynamic range control, and a rotating anode X-ray tube. It analyzes each imaging profile specifically to emphasize the anatomy of interest, improving picture definition, using its patented DRM technology. The C-Arm's ergonomic design offers comfort and efficiency while simplifying process setup with pre-programmed image profiles.
Features
- Configuration Options: GSP, ESP, ESP with 15fps Digital Disk, PMCare, Basic Vascular Platform, Vascular MTS, Cardiac Platform with Interventional Vascular Capability
- Dual 18-inch LCD flat panel monitors
- Simple user interface
- Dynamic Range Management for image quality
- 1K2 high resolution technology
- Pulsed fluoroscopy
- Iris collimator
- Rotating anode tube
- Digital spot
- 9800, general, orthopaedic, and spine pre-set imaging profile
- Noise filtering
- HIPAA SecureView
Specifications
- System Weight: 610 lb (9-inch c-arm), 660 lb (12-inch c-arm)
- em Dimensions: 77.8 x 33.5 x 69.7 inches (9-inch c-arm), 81 x 33.5 x 73.8 inches (12-inch c-arm)
- Simple user interface
- Arc Free Space: 31 inches
- Arc Depth: 26 inches (9-inch c-arm), 28 inches (12-inch c-arm)
- Orbital Rotation: 115 degrees
- Lateral Rotation: 360 degrees
- Flip/Flop: 180/90 degrees
- Wig/Wag: 20 degrees
- Horizontal Travel: 8 inches
- Vertical Travel: 18 inches
- Workstation Weight: 530 lb
- Workstation Dimensions: 27.3 x 35.5 x 68 inches
- Generator Power: 15 kW
- Digital Spot: Up to 75 mA
- X-Ray Tube Focal Spots: 0.3 and 0.6 millimeters
- Fluoro Mode kVp Range: 40 to 120 kVp
- mA Range: 0.2 to 10 mA (normal mode), 1 to 20 HLF (high level fluoro)
- Radiographic mA Range: Up to 75 mA
- Radiographic mAs Range: Up to 300 mAs
