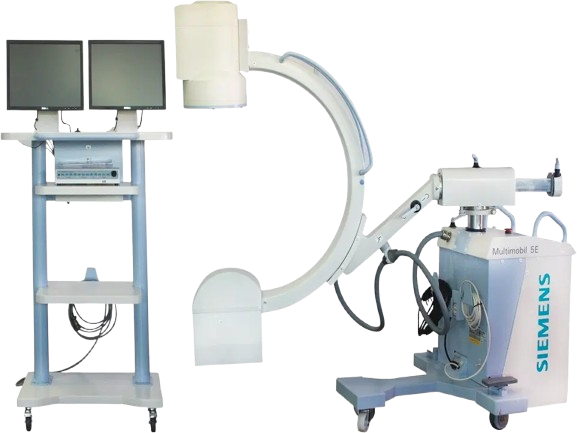

Siemens Multimobil 5C
Refurbished Mobile C-arm
Product Overview
The mobile C-arm MULTIMOBIL 5C provides the optimum solution of today's clinical requirements. It is ideally suited for entry level surgery in many application fields such as orthopedics, trauma surgery, general surgery.
Features
- Optimum Image Quality using superior CCD / CMOS Camera
- Low but adequate radiation with Automatic Dose Rate controlling device
- Equipped with High Frequency Generator suitable for Fluoroscopy and Radiography
- Full connectivity to computer with memory device
- TFT monitor that gives undistorted images
- Thermal Protection
Specifications
- Mains Voltage - 110V/190 -240V∼ 50 / 60Hz
- Power Output Radiography 100kV and 100mSec. - 2.5 kW (100 kV, 25 mA) @ 190-240V and 1.6KW (100 kV, 16 mA) @110V
- Power Output Radiography 100kV and 100mSec. - 2.5 kW (100 kV, 25 mA) @ 190-240V and 1.6KW (100 kV, 16 mA) @110V
- KVp Range - 40 – 100kV in 20 steps
- mA-range - 13 – 63 mA @ 190-240V input, 10 – 40 mA @ 110V input
- mAS range - 0.32 – 200
- Exposure Time - 20mSec - 5 Sec in 24 steps @190-240V, 20mSec – 8 Sec in 26 steps @ 110V
- Fluoroscopy voltage 40-110 kV
- Fluoroscopy Modes - ADR(Automatic dosage regulation): Anti-isowatt & Contrast.
- Fluroscopy mA range - Anti-isowatt 0.5 to 5 mA, Contrast 0.5 to 7mA
- Thermal Protection - Auto cutoff of fluoroscopy and radiography in case of tube head temperature exceeding 60° (+ 5°) celcius.
- Power Input Continous and Instantaneous - 1.5kVA ∕ 3.5kVA
- X - ray Tube - Stationary Anode DF-151R
- Focal Spot nominal value - 0.5 for Fluoroscopy, 1.5 for radiography
- Nominal kV - 110 kV
- Collimator - Motorised, multileaf Iris Collimator
- Total filtration - 5.3 mm Al at 100kV
- Total filtration - 5.3 mm Al at 100kV
- Pick Up device – CCD
- No. of monitors - 2 monitors one each for Live/Last Image Hold(LIH) and stored memory display
- Monitor size - 17“monochrome
- C-arm orbital movement - 125° (+90° to -35°
- Angulation - ±190°
- Horizontal travel - 200mm
- Swivel range - ±12.5°
- Vertical travel - 400 mm
- Mobility - Directional lock on rear wheels enabling excellent maneuverability
- Max. floor incline fortransport - 5°
- Mechanical Dimensions(lxbxh) - 2000 x 800 x1720 mm (min), 2070x1050 x2120 mm (max)
- Weight - 280kg
