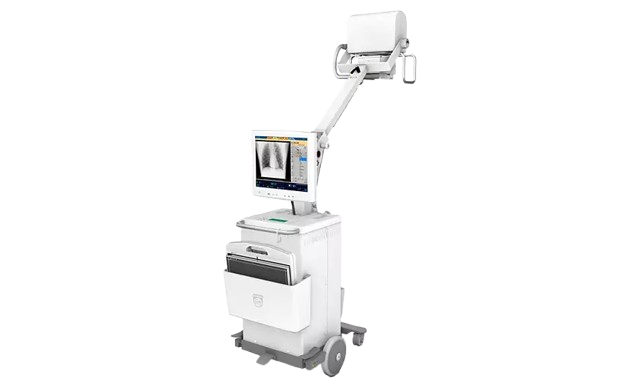

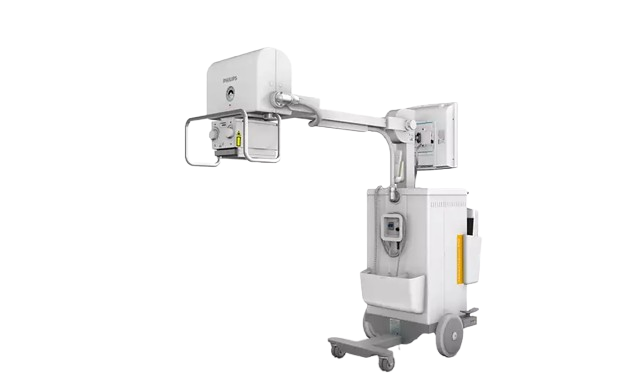

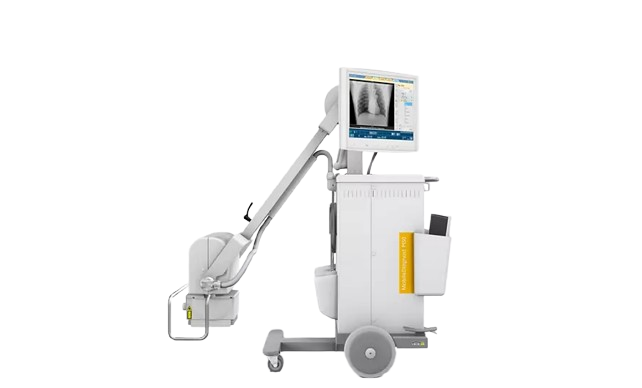

Philips MobileDiagnost M50
Refurbished Mobile Digital X-Ray
Product Overview
This compact and flexible mobile digital X-ray system delivers quality diagnostic images on a managed budget. The superb ease-of-use and wireless workflow offers a wide range of diagnostic capabilities to a busy imaging department.
Features
- Easy access to tight spaces
- Ease-of-use with wireless workflow
- Wide range of diagnostic capabilities
- 3 clicks to a complete exam
Specifications
- Detector type – Digital Wireless flat detector
- Detector size - 35 cm x 43 cm (approx. 14" x 17")
- Detector weight - 3.6 kg approx. (7.93 lbs)
- Scintillator - Gd2O2S
- Collimator type - Manual, with LED light field indicator
- Collimator filters - 1 mm Al + 0.1 mm Cu, 1 mm Al + 0.2 mm Cu, 2 mm Al, 0 mm Al
- Dimensions (LXWXH) – 1836mm X 618mm X 2293mm (72.3” X 24.3” X 90.3”)
- Mains supply – 230 ∕ 115V, 50Hz (60Hz)
- Source to floor distance – 416mm to 2056mm (16.4” to 81”)
- Generator Power – 16 ∕ 32kW High frequency
- mAS range - 0.1-110 mAs (12.5% steps)
- kV range - 40 - 125 kV (1kV steps)
- mA range - 50-200 mA (16kW) and 50-320 mA (32kW)
- Focal spots – 0.8 and 1.3
- Work station hard disk – 500 GB
- Image storage – Approximately 4000 images
- Monitor - 19" LCD color touch screen monitor (1280 x 1024)
- Work station battery capacity – 4200 mAh
