Philips BV Pulsera
Refurbished 9” C-arm
Product Overview

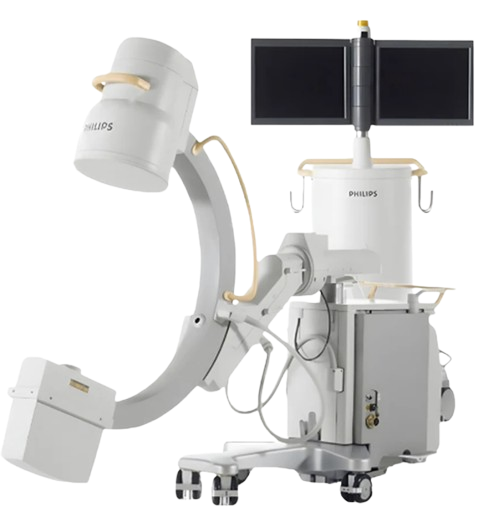

The PHILIPS BV Pulsera C-Arm is a powerful mobile fluoroscopy system for demanding surgical and interventional procedures.
Features advanced technology for extended exams, adaptable to various patient sizes. Equipped with SmartVision, a full digital 1Kx1K imaging chain, and state-of-the-art image processing for high-quality, low-radiation images. With a portable Mobile View Station, it suits cardiovascular, orthopedic, neurosurgical, and abdominal procedures.
Features
- Intuitive controls for flexibility
- Streamlined user interface on C-Arm stand
- Many language options
- LCD monitor height adjustment
- Ergonomical transportation
- SmartVision 1Kx1K imaging chain
- Real-time 2D enhancement, contrast, and brightness control
- SharpShot digital exposure mode
- 12-bit image pipeline processor
Specifications
- C-Arm Stand Weight: 672 lb (9-inch c-arm), 683 lb (12-inch c-arm)
- C-Arm Stand Length: 76 inches
- C-Arm Stand Width: 31.9 inches
- C-Arm Stand Height: 68.5 inches (9-inch c-arm), 72 inches (12-inch c-arm)
- Mobile View Station Dimensions: 27.6 x 35.8 x 74 inches (with folded monitors)
- Input Voltage: 110 to 240 V, 50/60 Hz
- X-Ray Tube Nominal Focal Spot Spot Values: 0.3 and 0.6 IEC
- Collimator Shutters Rotation: 360 degrees
- Generator Maximum Output: 7.5 kW
- Fluoroscopy kV Range: 40 to 120 kV
- mA Range: 0.10 to 8.3 mA (low dose), 0.24 to 20 mA (high definition mode)
- Radiography mA Range: 60 mA fixed
- Monitor Screen Size: 18 inches
- Display Image Matrix Size: 1024 x 1280 x 8
- Image Storage Capacity: 10,000 images maximum (30 frames per second), 5,000 images maximum (8 frames per second), 500 images maximum (5 frames per second)
- C-Arm Longitudinal Movement: 7.9 inches
- Swivel Range: 10 degrees
- C-Arm Vertical Movement: 19.8, +17.3/-2.5 inches
- Rotation: +/- 180 degrees
- Orbital Movement: 90, -25 degrees
- Free Space: 30.7 inches
- C-Arc Depth: 24 inches
